Wires & Accessories
| LOW CARBON GALVANIZED STEEL WIRE | |
| Standard | BSEN-102244-02 |
| Tensile Strength | 350-550 Mpa |
| Zinc Weight | 40g/m2-350 g/m2 |
| Diameters range | 1.7mm to 4.0mm |
| Packaging | 400-500Kgs Pattern Laid Coil,Depending on Wire Diameter |
| Typlical Applications | Industrial Products, Fencing Applications, Welded Mesh products Etc. |
| PVC COATED LOW CARBON GALVANIZED STEEL WIRES | |
| Standard | According to the Customers Specifications |
| Coated Wires | Galvanized or Bright |
| Tensile Strength | 350-550 Mpa |
| Diameters range | 1.7/2.6mm, 2.0/3.0mm, 2.2/3.2mm, 2.5/3.5mm, 3.0/4.0mm, 3.55/4.75mm,3.76/4.88mm, 4.0/5.0mm |
| Available colors | Green (RAL 6005), Blue (RAL 5017) other colours are Available upon request |
| Packaging | 400 – 500 Kgs, Depending on the Wire Diameter |
| Typical Applcations | Industrial Products, Fencing Applications Etc. |
| BARBED WIRES | |
| Standard | BSEN-10223-1 |
| Wires | Galvanized or PVC Coated Finishing |
| Tensile Strength | 350-550 Mpa |
| Wires Size | 1.7/2.6mm,2.0/3.0mm,2.2/3.2mm for PVC Wire 2.0mm,2.5mm for Galvanized Wire |
| Pitch Distance | 3” to 5 ” |
| Packaging | 100m to 200m. Depending on Wire Diameter |
| CONCERTINA | |
| Wire Dia. | 600mm DIA |
| Wire Spiral Dia | 2.5mm Wire + 1.0mm Sheet |
| Wire Tensile Strength | 1325 N/mm2 |
| Barb Dia/Razor | Razor type 0.5MM Strip at a Distance 35.5mm |
| Finishing | Galvanized or Stainless Steel |
| Sprial Spacing | 295mm |

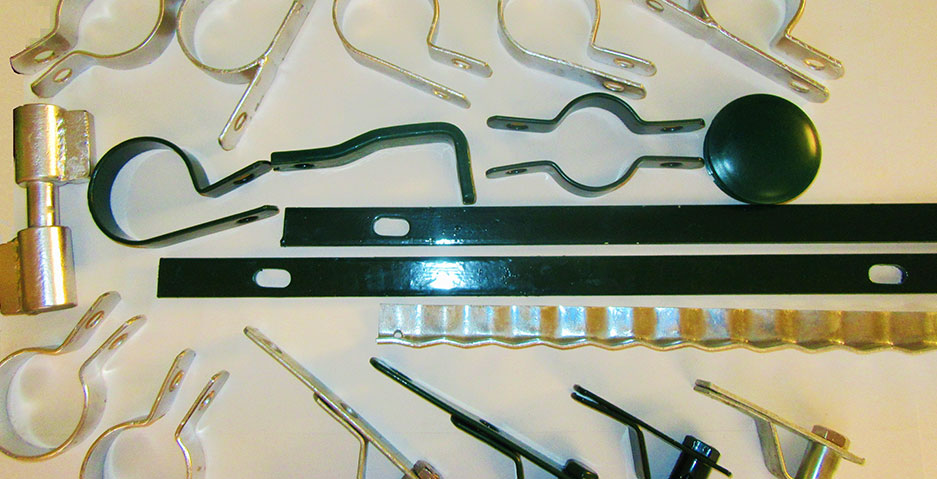

| FENCE ACCESSORIES | |
| ITEMS | Stretcher Bars, Dropper bars, Clamps, Truss Bracket, Truss Rod, Long Winder, Short Winder, Pad Lock |
| FINISHING | Galvanized or PVC Coated |
